Minimum Selection Requirement to complete the configuration:

  • Input Type
  • One Output Panel



Following functions are included by default (cannot be modified in the online configurator)

  • 19” 3 U aluminum subrack

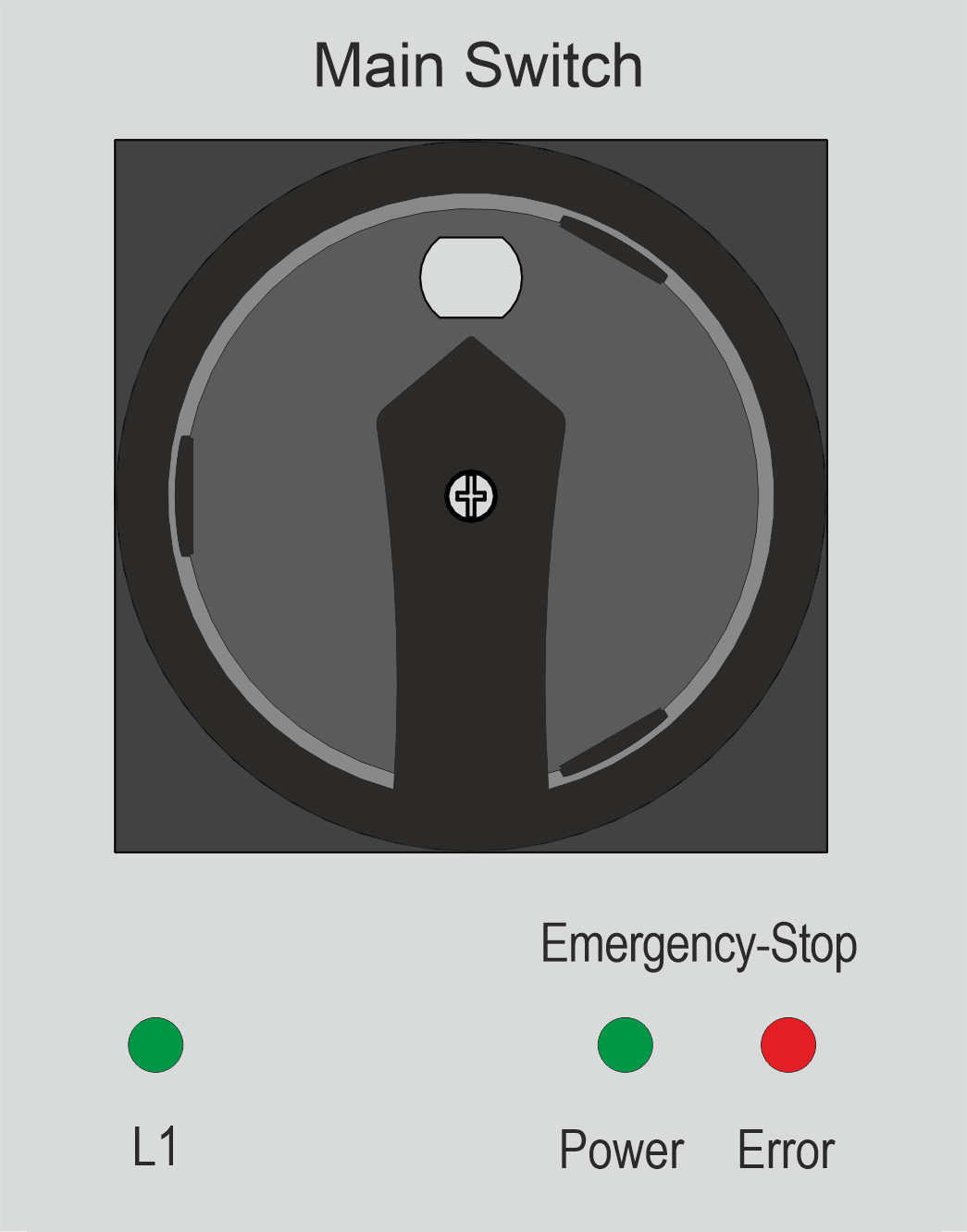

  • Main switch
  • Mains fuses
  • Circuit breaker panel
  • Emergency stop system

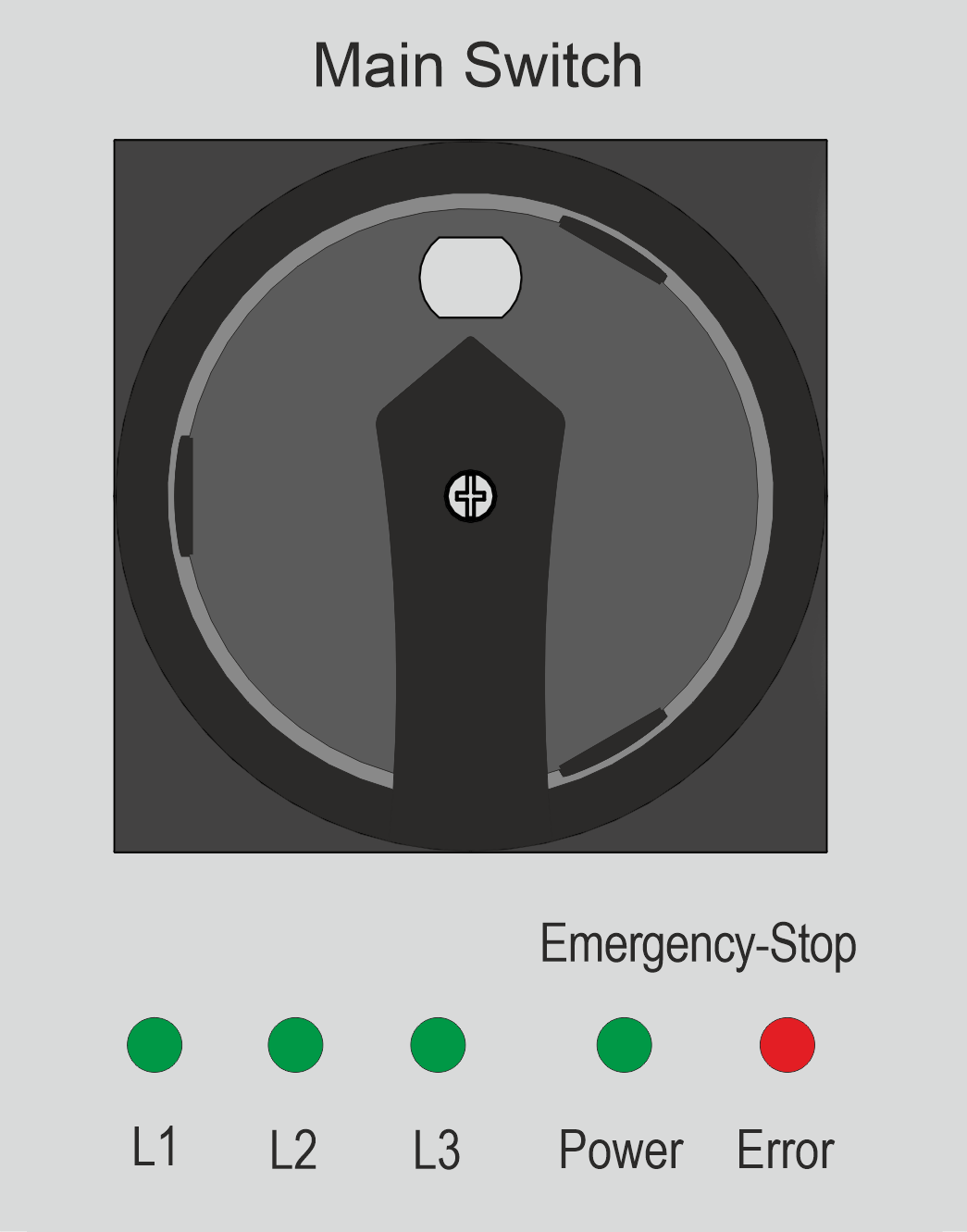

  • Status LEDs for phase presence and emergency stop
  • ON/OFF switch for switched outputs



Possible configuration

Power Input

  • Mains Input: 400 V 3-phase or 230 V 1-phase
  • Preferred connector types: e.g. IEC 60309 3L+N+PE, 6h, IEC 60320-C20, Harting Han 3A with Han Q 5/0
  • With or without EMC filter

Power Output

  • AC Outputs: 2 rear panels with different connector types such as IEC 60320-C13, IEC 60320-C19 or CEE 7/3 Type F (Schuko).
  • DC Output: 24 V DC, 14.6 A power supply with rear output panel
  • Permanent AC Service Outputs: IEC 60320-C13 or CEE 7/3 Type F (Schuko) at the front and/or rear panel

Features:

  • RCD circuit breaker
  • Transparent cover for the circuit breakers
  • Surge Arrester
  • Inrush Current Limiter

Additional Information:

  • On customer request the safety features and power distribution can be divided into two devices. Please state requirement in additional comments.
  • Optional remote management module (on/off function, all states can be queried remotely and all switching functions can be performed remotely) on custom request. Please state requirement in additional comments.
  • All outputs except the "Service" outputs will be switched off by the Emergency Stop system
  • All AC outputs are protected by circuit breakers.
  • For IEC 60309 connectors EMC input filter can be selected. If EMC filter is required with other mains input connector, please state in additional requirements field

For more information about the installation and safety system, please download the user manual.

Manual Download



Please download our Standard Color Pattern Guide for information about our standard color offering.

Color Guide Download

The fastest way to define your PDU including emergency safety functions

Select the items below

Please select an option
Mains Voltage

After selecting your mains input voltage – 1-phase 230 V AC or 3-phase 400 V AC you can choose different input connectors.
Please select an option
Mains Connector

After selecting your mains input voltage – 1-phase 230 V AC you can choose different input connectors:

230 V AC Input

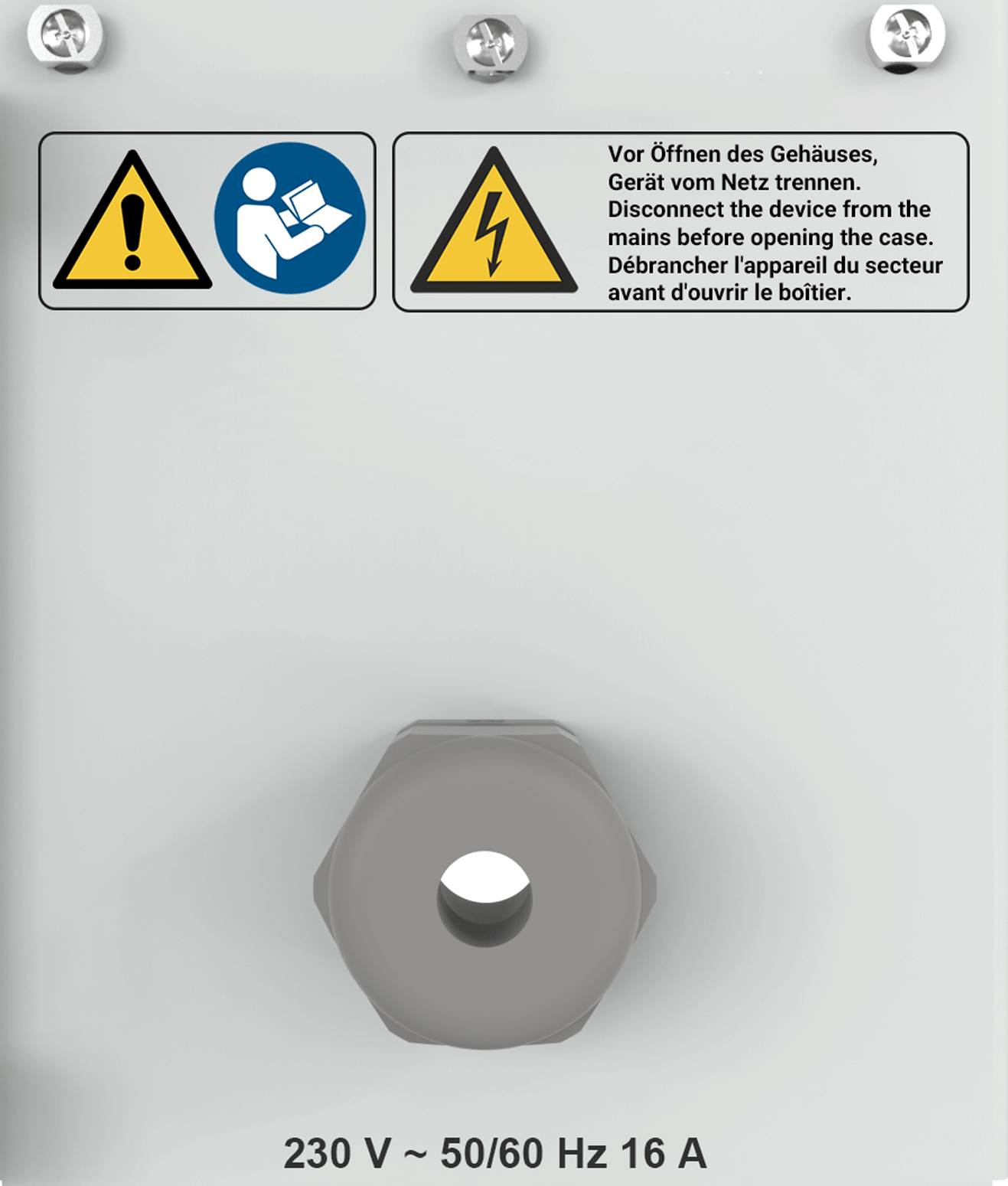

  • Cable (2.5 m): Mains cable with 2.5 m length which is fixed to the Unit with a PG Screw Connection, Fuse T 16 A / 250 V built into the Rack Safety Plus Unit.

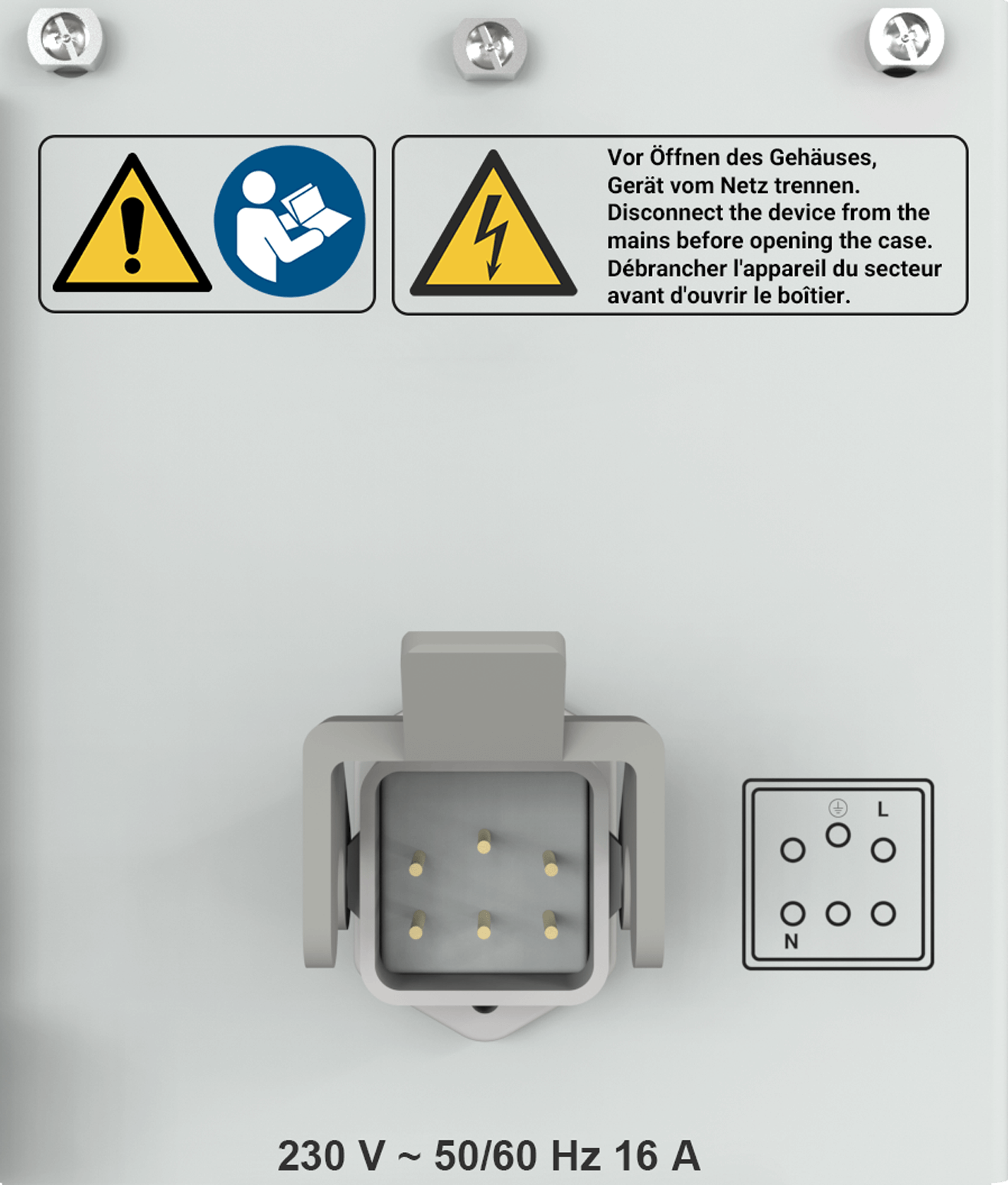

  • Harting Han 3A with Han Q 5/0: Mains Input connector housing Han 3A with insert Han Q 5/0 from Harting. Fuse T 16 A / 250 V built into the Rack Safety Plus Unit.

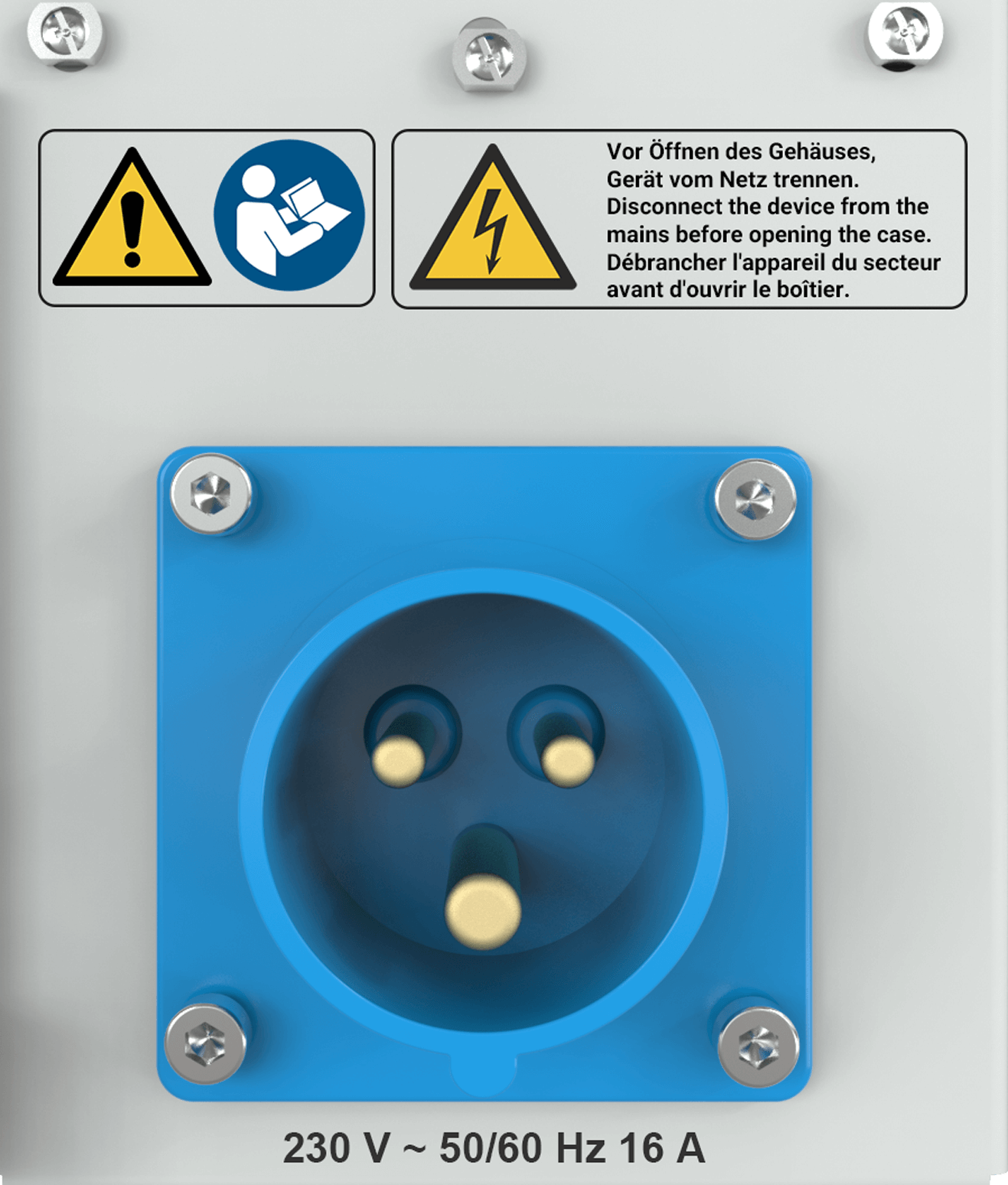

  • IEC 60309 L+N+PE, 6h: The “blue” CeKon connector for 1-phase, 230 V AC defined by IEC. Fuse T 16 A / 250 V built into the Rack Safety Plus Unit. When choosing this connector EMC filter can be selected as well.

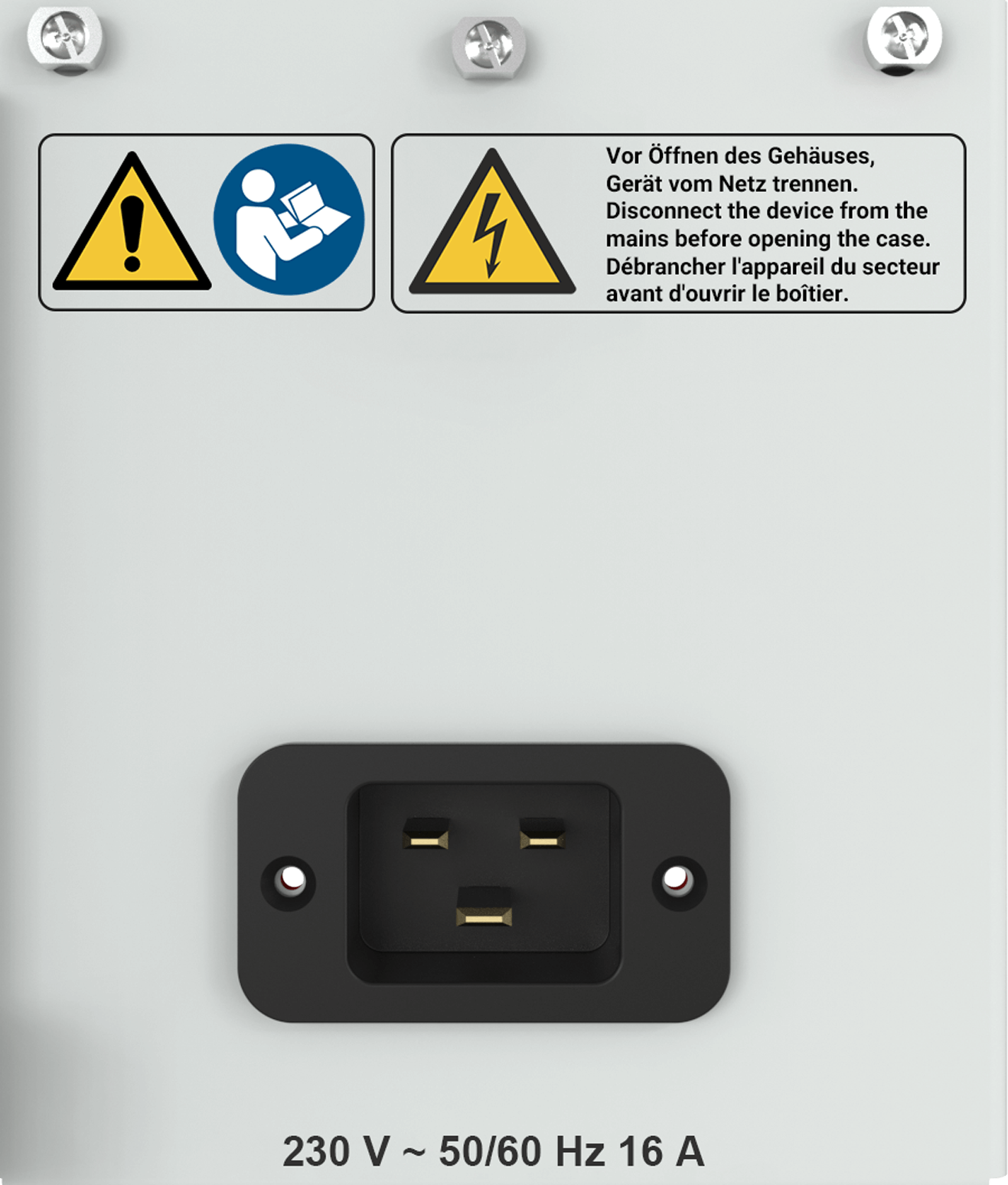

  • IEC 60320-C20: Non-locking connector defined by IEC for electrical appliances for up to 16 A. Fuse T 16 A / 250 V built into the Rack Safety Plus Unit.
  • EMC Filter: only available for IEC 60309 L+N+PE, 6h
EMC Filter
Please select an option
Mains Connector

After selecting your mains input voltage – 3-phase 400 V AC you can choose different input connectors:

400 V AC Inputs

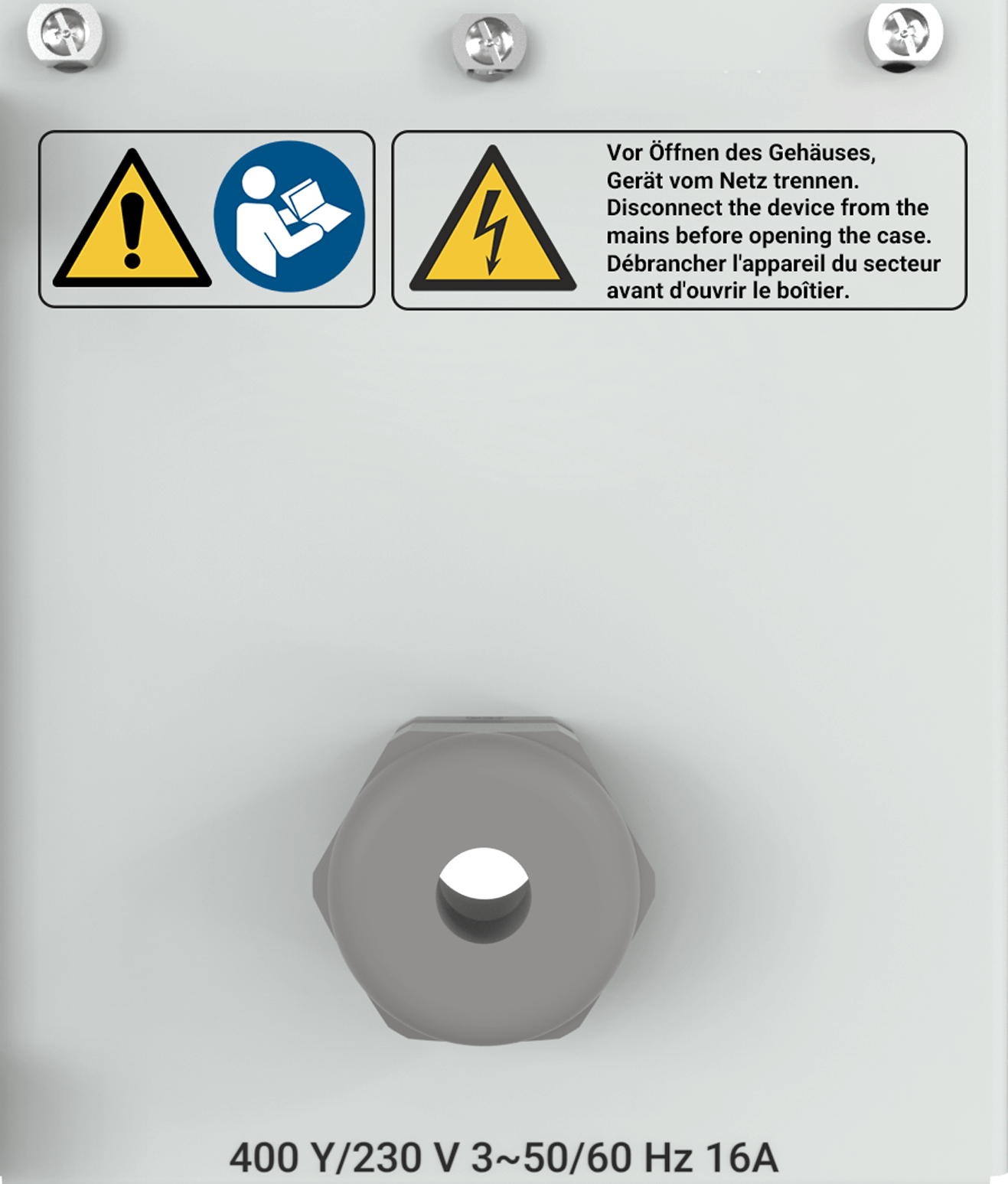

  • Cable (2.5 m): Mains cable with 2.5 m length which is fixed to the Unit with a PG Screw Connection, 3x Fuses T 16 A / 250 V built into the Rack Safety Plus Unit.
  • Harting Han 3A with Han Q 5/0: Mains Input connector housing Han 3A with insert Han Q 5/0 from Harting. 3x Fuses T 16 A / 250 V built into the Rack Safety Plus Unit.

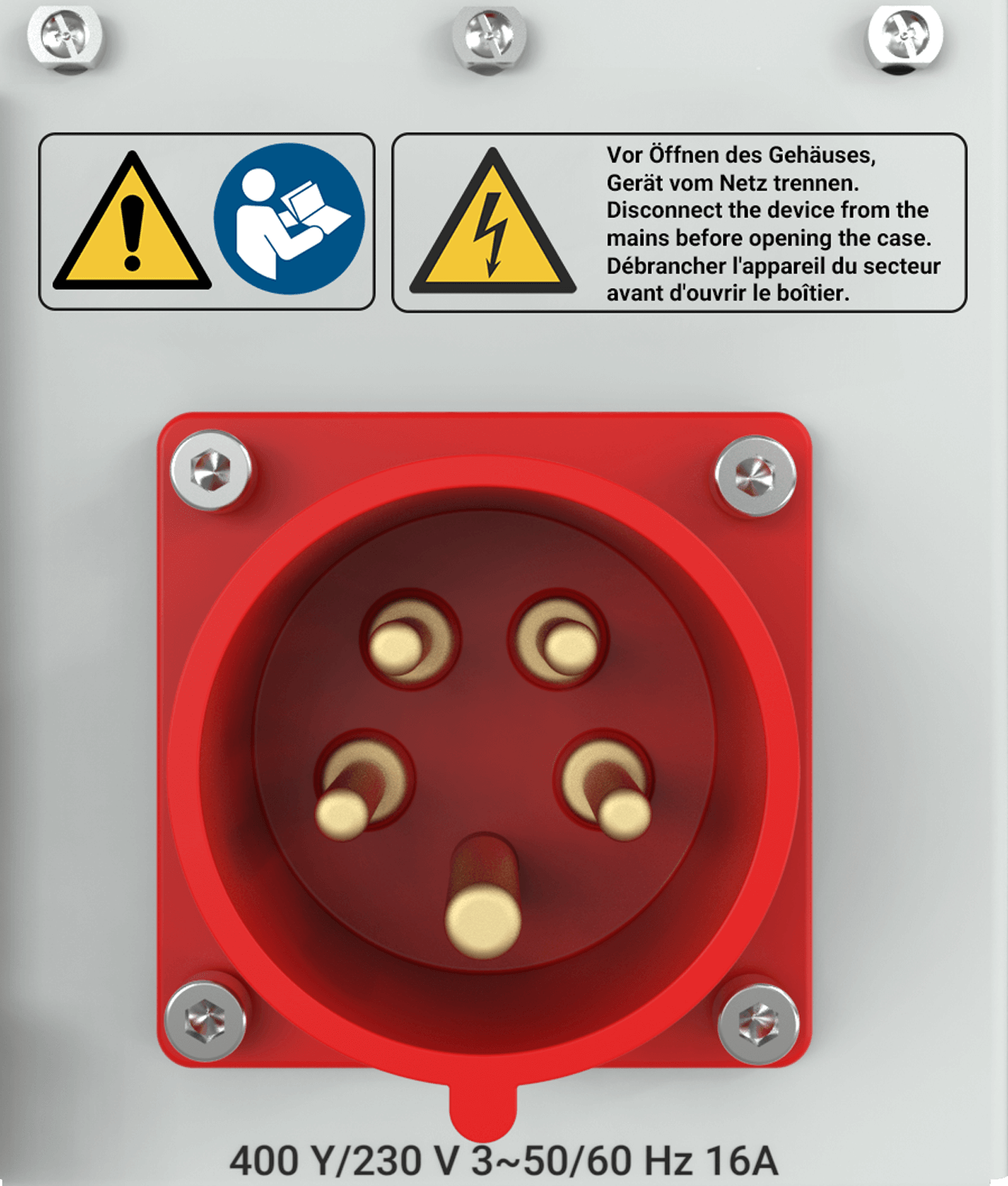

  • IEC 60309 3L+N+PE, 6h: The “red” CeKon connector for 3-phase, 400 V AC defined by IEC. 3x Fuses T 16 A / 250 V built into the Rack Safety Plus Unit. When choosing this connector EMC filter can be selected as well.
  • EMC Filter: only available for IEC 60309 3L+N+PE, 6h
EMC Filter
